The Activity of Single Cells in the Midbrain and Hypothalamus of the Cat during Affective Defense Behavior

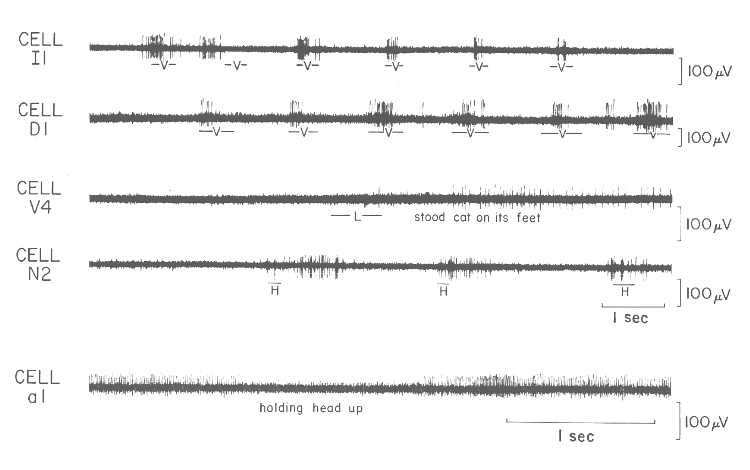

Figure 9: Cells facilitated during various manipulations with one common element. Page 24
cells facilitated by various manipulations

Cells I1 from the superior colliculus and D1 from the oculomotor nucleus are shown responding to movement of a hand across the field of vision (V). Cell V4 from the dorsal hypothalamus is shown as silent while the cat was lying down and then firing after the cat was lifted (L) and stood on its feet. Cell N2 from the nucleus centralis lateralis of the thalamus is shown firing during head turning (H). Cell a1 is shown inhibited while the experimenter held the cat's chin up.
