The Activity of Single Cells in the Midbrain and Hypothalamus of the Cat during Affective Defense Behavior

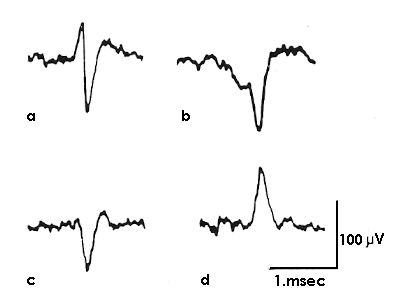

Figure 2: Types of waveforms of single cell responses

Page 17

Positive is upward. Waveform a was considered to have come from an injured cell because of the initial positivity followed by negativity. Waveform b was considered to have come from an injured cell because of the pronounced notch on the spike. Waveform c (from cell F2) was considered to have come from an uninjured cell because of its initial negativity. Waveform d (from cell I1) was considered to have come from an uninjured cell because it was only positive. Records were played back unfiltered from tape recorder onto a storage oscilloscope, photographed with a polaroid camera and reversed photographically.
